Insulation Transformer from Larson Electronics

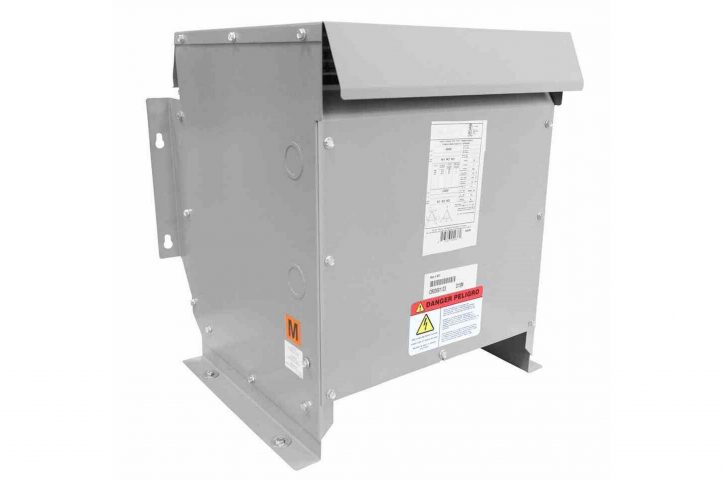

Larson Electronics, a pioneer in the industrial lighting and equipment industry, has announced the launch of a 75 kVA isolation transformer designed for indoor and outdoor use. This transformer provides reliable protection against critical equipment failures and offers lower operating costs and lower heat emissions. This three-phase unit has a Delta primary voltage of 480V.

The MT-DOE16-3P-480D-75KVA-480Y.277-N3R 75 kVA insulation transformer has cores made of non-aging, cold-rolled silicon steel laminations. This unit has a Delta primary voltage of 480V and a secondary voltage of 480Y / 277 W. This transformer comes with a standard NEMA Type 3R housing that can be mounted on the floor and has a temperature rise of 150°C and insulation of 220 with C.

Larson Electronics' IP24 rated insulation transformer has precision cut aluminum winding material and close tolerances used during production to improve performance and eliminate burrs. Each of the hubs of the unit is specially coated to prevent moisture and is electrically balanced to minimize axial forces in the event of a short circuit.

This unit provides operators with protection against electric shock and can suppress electrical noise in sensitive devices. This insulation transformer insulates the electrical appliance from the power supply and the isolation between the primary and secondary power supplies to provide safety protections. Suitable applications include general use in industrial and commercial environments.
