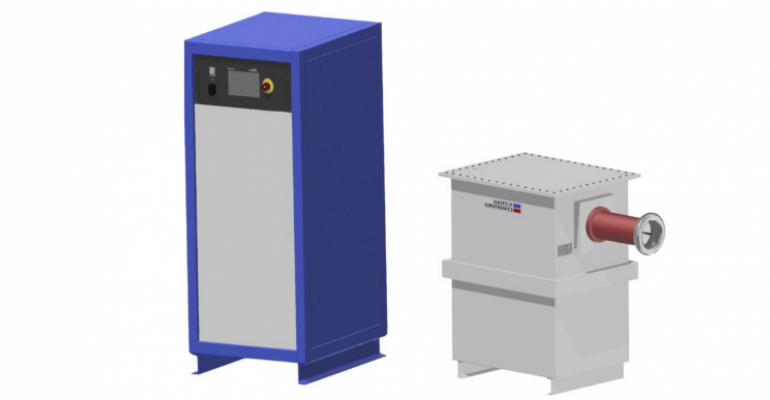

Haefly Hipotronics' New 700 Series Test Group

Haefely Hipotronics, a Hubbell Inc. company that manufactures high-voltage testing equipment, has announced new AC Dielectric Test Kits that perform high-voltage AC tests on electrical devices in accordance with IEC 60, IEEE 4 and IEC 270 and other national standards.

The series is available in a wide range of voltages and power ratings. The 700-DI benefits users with a 7-inch intuitive, touchscreen interface and is designed with a microprocessor that provides better editing, measurement accuracy, and a wider test voltage range. Prioritizing safety with exceptional reliability, durability and affordability, the 700-DI is also equipped with zero start locks and is SIL 3 compliant.

Properties

• Microprocessor controller provides better regulatory accuracy and measurement accuracy

  • Continuously adjustable test output voltage

  • SIL3 Compliant

  • Designed to operate between 2% and 100% of the maximum rated output voltage

  • Easily accessible meter calibration

  • Adjustable overload between 10% and 110% of the rated current output

  • Backup breaker overload, safety state

  • Output Connected voltmeter and ammeter

  • Zero start lock ensures voltage control is minimal before the HV is energized

  • Current level benefit proportioned from 0

  • It is easy to use with minimal installation time and intuitive control panel.

  • HV transformer windings with surge compensation against all-voltage resistant flare-ups

  • Output Coupled Meters provide fast and accurate readings

  • Overvoltage and Temporary Protection in all meters, transformers

  • Partial Discharge Testing allows for low PD levels available at full output voltage

Where can it be applied?

• Transformers

  • Transformer tools

  • To the horoscopes

  • Sample Cable Lengths

  • Connectors

  • To rotating machines

  • Capacitors

  • Insulation materials

  • Switchgears

  • Transmission Line Hardware

  • To interceptors

  • High voltage components
