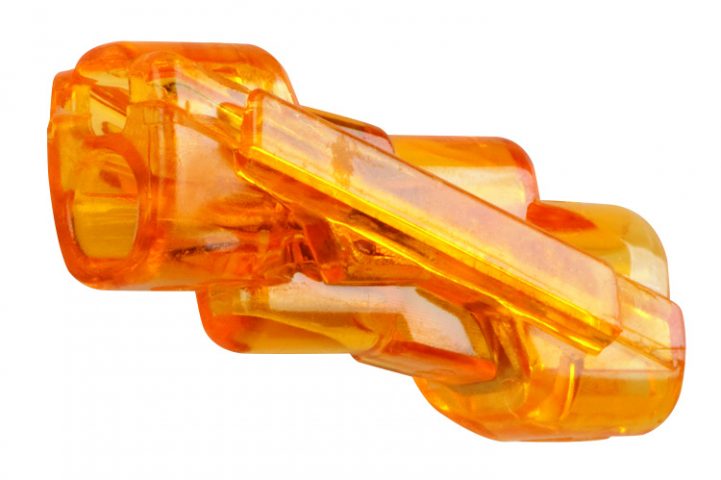

Short-Term Wiring with the IDEAL SpliceLine Cable Connector

The SpliceLine cable connector, which is available in the wide range of cable connectors of Ideal Industries, is 3 times faster than the traditional method of attaching cables to the end, thus saving 50% more time with the easy cable joining method.

The SpliceLine inline cable connector is an innovative alternative to traditional butt ends that do not require time-consuming crimping, soldering or heat shrinkage to create secure end-to-end connections.

Electricians are often faced with an existing wire cut by the previous contractor to safely install a socket, light switch or lighting fixture. In such cases, although it is not impossible to use a crimping tool due to space constraints, it often presents difficulties. However, with SpliceLine, the short wire is simply inserted into one end of the connector, the extra wire length is pushed to the other open end. In this way, it now takes less than 10 seconds to put two cables together.

Rated 32 A/450 V, small size and tool-free application make SpliceLine an obvious solution for connecting wires in prefabricated wiring, lighting and ring main circuits. The 2-port model accepts solid conductors up to 4.0 mm² and allows one connector to do the work of adding multiple cables end-to-end.

All IDEAL wire connectors have been tested according to EN60998 safety standards and have been used in accordance with Article 18 of the Wiring Directive. He has made it fit for the article.
